DECIMATOR DESIGN MD-HX HDMI/SDI Cross Converter

*Please click 'contact us' to email us and we will send you a quote for the pricing*

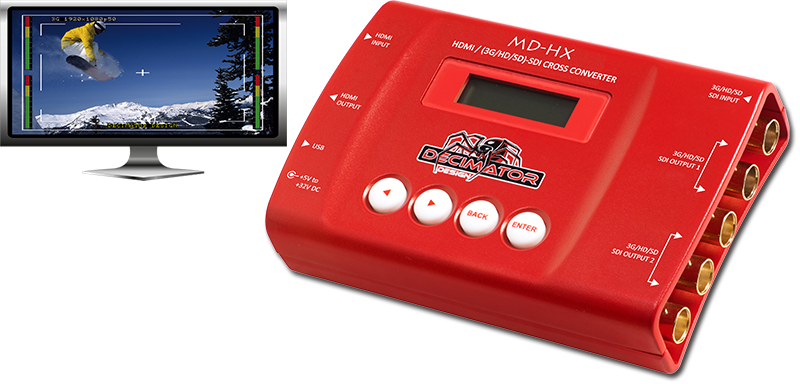

MD-HX HDMI/SDI Cross Converter with HDMI and (3G/HD/SD)-SDI outputs

For serials starting with CLD, CLE and CLF
New features includes:

• • VESA formats on HDMI input
  • 2K video formats
  • Overlays for Audio Meters, UMDs, Format Status and Graticules.
  • Video Test Pattern Generator
  • Audio Tone Generator.

• The MD-HX is a small low power portable converter encased in a solid robust aluminium case and does not contain a noisy fan. Allowing it to be used in almost any environment.
• Allows either of the HDMI or SDI outputs to be simultaneously sourced from either the HDMI or SDI input or the new 2K Motion Adaptive Scaling Engine.
• Professional 3G/HD/SD Test Pattern Generator with 41 selectable output formats and 58 test patterns including Luma and Chroma Zone-Plates.
• Overlays for:
  • 16-Channel Audio Metering
  • Adjustable Safe Title and Safe Action
  • Center Cross
  • UMD Text
  • Format Status
• Supports 204 VESA formats via HDMI input
• The 2K Motion Adaptive Scaling Engine can be driven by either the SDI or HDMI input, supports horizontal and/or vertical flipping.
• The 2K Motion Adaptive Scaling Engine can scale and/or frame rate convert between 245 input formats and 41 output formats.
• Internal precision is not fixed and increases as required (for example, 32–40 bits or greater) during operations such as scaling and colour conversion to maintain accuracy.
• Decimator Design has developed advanced proprietary scaling technology that surpasses conventional polyphase approaches, providing markedly improved sharpness, reduced aliasing, and superior overall image quality.
• The audio pairs in the SDI and HDMI outputs can be rearranged as required.
• Includes 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.
• The audio pairs in the SDI and HDMI outputs can be rearranged as required.
• The MD-HX is a truly portable product that incorporates an easy-to-use LCD screen and button control system. This gives easy access to the outstanding features without using complicated LED/button controls, dip switches, or having to carry around a computer to change a simple setting.

_________________________________________________________________________

For legacy MD-HX units with serials starting with CLA, CLB and CLC

• Supports both 3G level A and B on the input and output. Allowing conversion between A and B.
• Horizontal and/or Vertical image flipping via the built in scaler.
• Combines several converters for the price of one (e.g. SDI to HDMI, HDMI to SDI, Down Up Cross Converter, etc.)
• Robust Aluminium Case with easy to use LCD and button control system.
• 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.
• The audio pairs in the SDI and HDMI outputs can be rearranged as required.
• Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.
