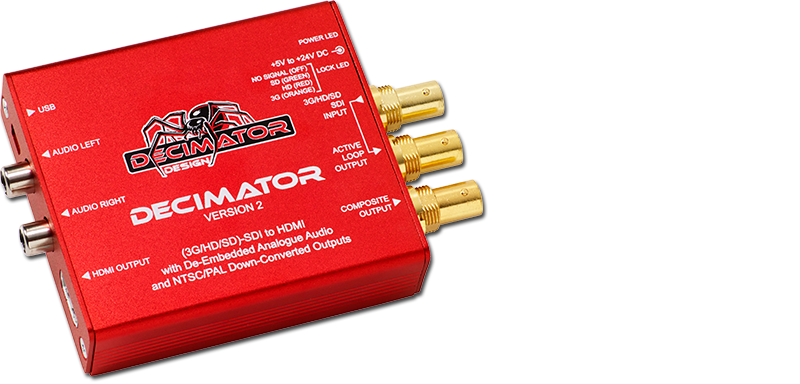

DECIMATOR 2(3G/HD/SD)-SDI to HDMI with De-Embedded Analogue Audio and NTSC/PAL Down-Converted Outputs
- Auto detects 3G, HD or SD (26 Formats in total) and can handle switching of synchronous sources
- Simultaneous scaling on both the HDMI and Composite outputs with a maximum delay of 1 input frame
- HDMI output with optional full scaling and aspect ratio conversion.
-
Down-converted Composite output with:
- NTSC or PAL is selectable for 3G/HD inputs
- SD will be passed unchanged
-
Low latency 3G/HD to SD Down-conversion with ARC (Aspect Ratio Conversion) of either:
- 16:9 to 16:9 Anamorphic
- 16:9 to 4:3 Letterbox
- 16:9 to 4:3 Centre Cut (Crop to 4:3)
- Full 10-bit data path and multipoint interpolation
- 16 times over-sampling for Composite Output
- Passes EIA-708/608 Closed Captions to the Composite Output
- Full 16-Channel Audio metering displayed on the HDMI output
- Adjustable Graticules Generator displayed on the HDMI output
- Text Overlays displayed on the HDMI output
- De-Embedded Analogue Audio is output on 2 x RCA connectors at -10dBu = -20dBFS
- 3G/HD/SD-SDI Active Loop-Through Output External Dip-Switch Configuration
- USB port for control and firmware updates
- Locking DC Power Socket
