DeckLink IP

The Perfect Capture and Playback for 2110 IP Broadcast Systems!

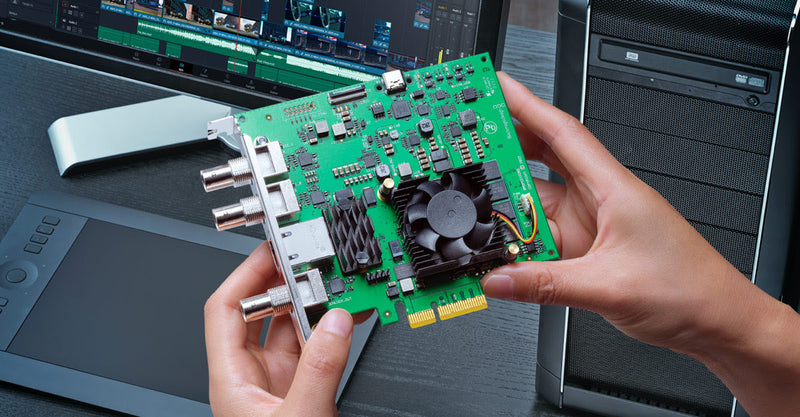

DeckLink IP cards are the easiest way to capture and play back video directly into 2110 IP based broadcast systems! They have the same DeckLink features so all your existing software will just work! DeckLink IP cards support multiple video channels plus each channel can capture and play back at the same time. This means you can build racks of servers generating broadcast graphics, virtual sets, or GPU based AI image processing, all directly integrated into 2110 IP broadcast infrastructure. You can even use DaVinci Resolve for 2110 IP based broadcast editing workstations! DeckLink IP features a high speed PCIe connection so it works on the latest Mac Pro, Windows and Linux computers.

DeckLink IP cards also conforms to the SMPTE ST2110 standard for IP video. The big advantage of SMPTE 2110 is all video, audio and ancillary data are transported independently over the network!



Three Great DeckLink IP HD Models!

DeckLink IP HD

DeckLink IP features 3 channels of capture and playback to 2110 IP broadcast systems via a single RJ45 style Ethernet connection. It supports all 720p, 1080i and 1080p video standards up to 1080p60.

DeckLink IP HD Optical

DeckLink IP features 3 channels of capture and playback to 2110 IP broadcast systems via an SFP based optical fiber Ethernet connection. It supports all 720p, 1080i and 1080p standards up to 1080p60.

DeckLink IP/SDI HD

For connection to both 3G-SDI and 2110 IP systems, this model has 2 capture and playback channels to 2110 IP via RJ45 Ethernet, 3G-SDI and ref out. Supports 720p, 1080i and 1080p standards to 1080p60.
