*Please click 'contact us' to email us and we will send you a quote for the pricing*

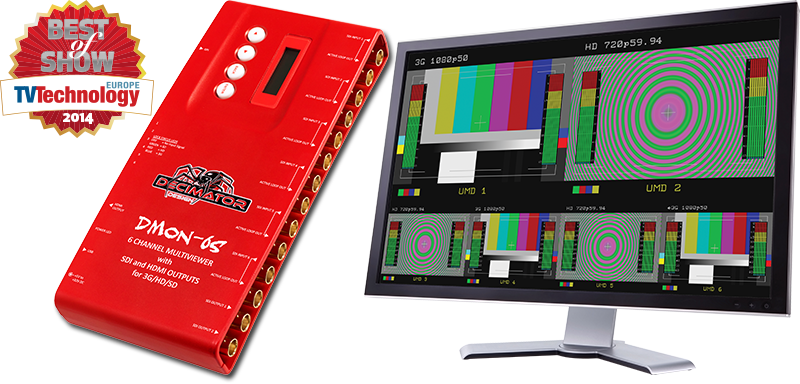

DMON-6S 6 Channel MultiViewer with HDMI and SDI outputs for 3G/HD/SD
- Support both 3G level A and B on the input and output. Allowing conversion between 3G level A and B.
- Low cost miniature (3G/HD/SD)-SDI 1 to 6 channel Multi-Viewer or 6 to 1 input multiplexer
- 6 x (3G/HD/SD)-SDI active loop copies of each input
- Custom Layouts with various standard layouts
- 16 Character UMD overlay per window with individual enables, custom positioning and size
- 16 Channel Audio Metering overlay per window with individual enables, custom positioning and size
- Safe Action and Safe Title overlay per window with individual enables and adjustment
- Centre Cross overlay per window with individual enable
- Audio ID overlay
- Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
- Tally boxes allows for up to 4 Tallies per window (Green, Red, Blue and Yellow)
- Load and restore Custom Layouts
- Fast switching between inputs using Full-Screen scaling
- Selectable output format in both Full-Screen and Multi-Viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- Linked (3G/HD/SD)-SDI and HDMI outputs
- 6 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
- Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
- Variable aspect ratios per window
- Pass-Through mode allowing any of the 6 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs
- The DMON-6S is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
